MATCH MACHINERY specializes in matching your graphic finishing equipment requirements with the perfect new or pre-owned equipment. Whether it is for converting, finishing, binding or any other equipment application, we can match it!
Equipment Sales & Support
- New Graphic Equipment
- Previously Owned Equipment
- Technical Sales & Support
- Financing Options
- Installation Guidance
- Transport Logistics
- Onsite Equipment Support
GET A FREE EXPO PASS
ENTER PROMO CODE
In the form to the right:
# 773271
featured new equipment
Multi-Media & Specifications

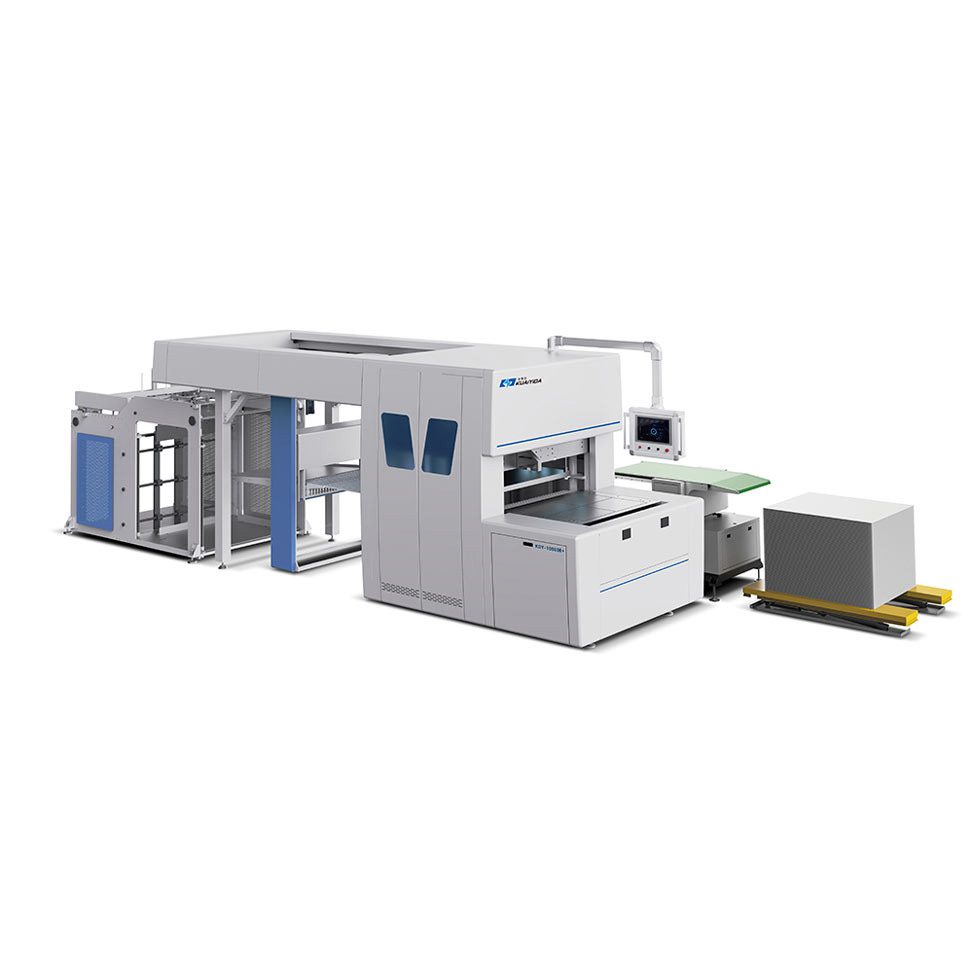

Model KYD-1080C+ Servo, with Lifter and Stacker
KYD-1080C+ Machine Overview
This KYD-1080C+ automatic stripping & blanking machine has a powerful waste removal function. It is complete with a row blanking function, which can achieve one pass and fully remove all waste after die cutting.
Allows for different specifications of box types, windows, and aircraft holes, and material waste edges of front and back stitching as long as they are within the size requirements of machine. This machine has the capacity for removing the waste completely in one pass, with speed, efficiency and simple operation increasing the user’s production capacity.
No need for molds for different product sizes with the honeycomb plate frame and pins to adapt to the changeable box shape.
The lower pins support product area and the upper pins press on the waste area to remove the waste. OEM Upper Working Panel for customer die cutting layout. Row stripping & Full stripping function to accommodate more die cutting products. Touch Screen operation. Save on Labor, tool and mold costs.
Machine Preview Video:
KYD-1080C+ Machine Specifications
- Max Material Stack Size: 1080*780MM (42.51” x 30.70”),
- Max Material Stack Height: 80MM (3.14”),
- Max. Product Size: 1060*760mm (41.73” x 29.92”),
- Min. Product Size: 35*35mm (1.37” x 1.37” ) (manual mode)
- 50mm* 50mm (1.96” x 1.96”) (Auto mode with stacker),
- Speed: 2-3 times/min,
- Reference # KYD1080C+
featured new equipment
Model KYD-1080C+ Servo, with Lifter and Stacker
KYD-1080C+ Machine Overview
This KYD-1080C+ automatic stripping & blanking machine has a powerful waste removal function. It is complete with a row blanking function, which can achieve one pass and fully remove all waste after die cutting.
Allows for different specifications of box types, windows, and aircraft holes, and material waste edges of front and back stitching as long as they are within the size requirements of machine. This machine has the capacity for removing the waste completely in one pass, with speed, efficiency and simple operation increasing the user’s production capacity.
No need for molds for different product sizes with the honeycomb plate frame and pins to adapt to the changeable box shape.
The lower pins support product area and the upper pins press on the waste area to remove the waste. OEM Upper Working Panel for customer die cutting layout. Row stripping & Full stripping function to accommodate more die cutting products. Touch Screen operation. Save on Labor, tool and mold costs.
Machine Preview Video:
KYD-1080C+ Machine Specifications
- Max Material Stack Size: 1080*780MM (42.51” x 30.70”),
- Max Material Stack Height: 80MM (3.14”),
- Max. Product Size: 1060*760mm (41.73” x 29.92”),
- Min. Product Size: 35*35mm (1.37” x 1.37” ) (manual mode)
- 50mm* 50mm (1.96” x 1.96”) (Auto mode with stacker),
- Speed: 2-3 times/min,
- Reference # KYD1080C+
featured new equipment

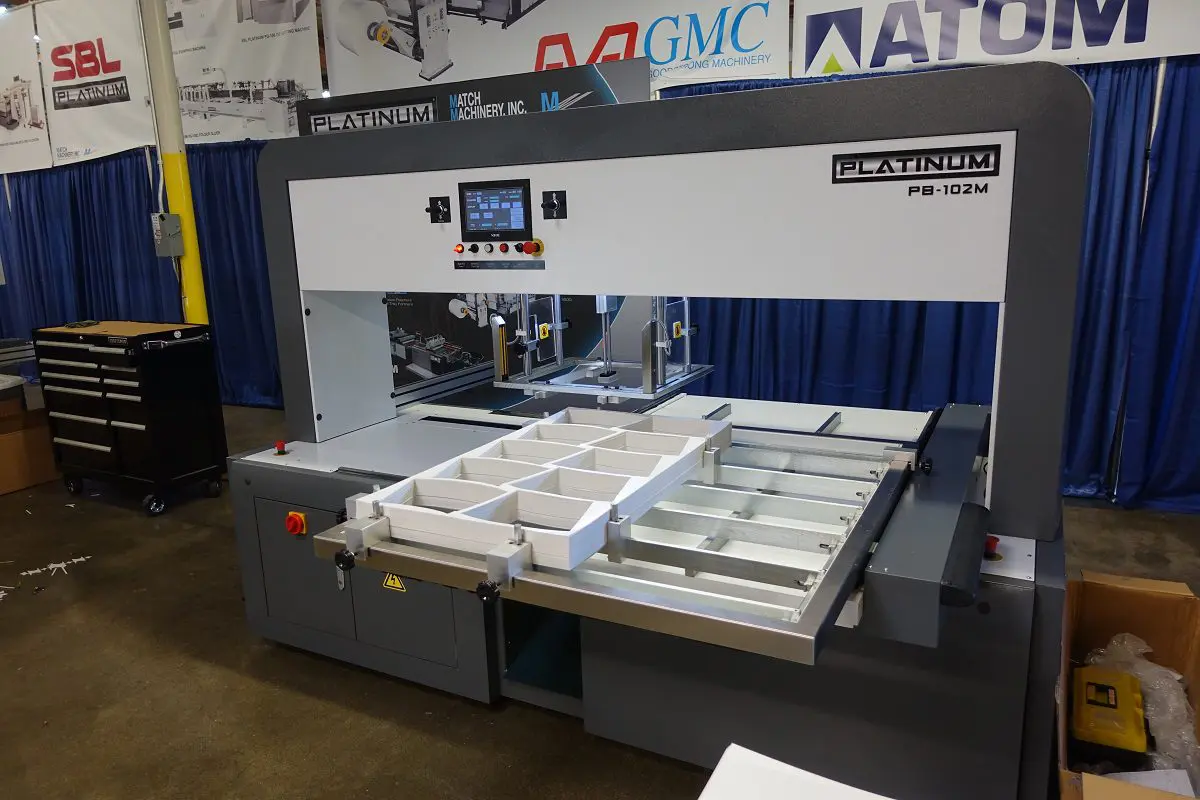

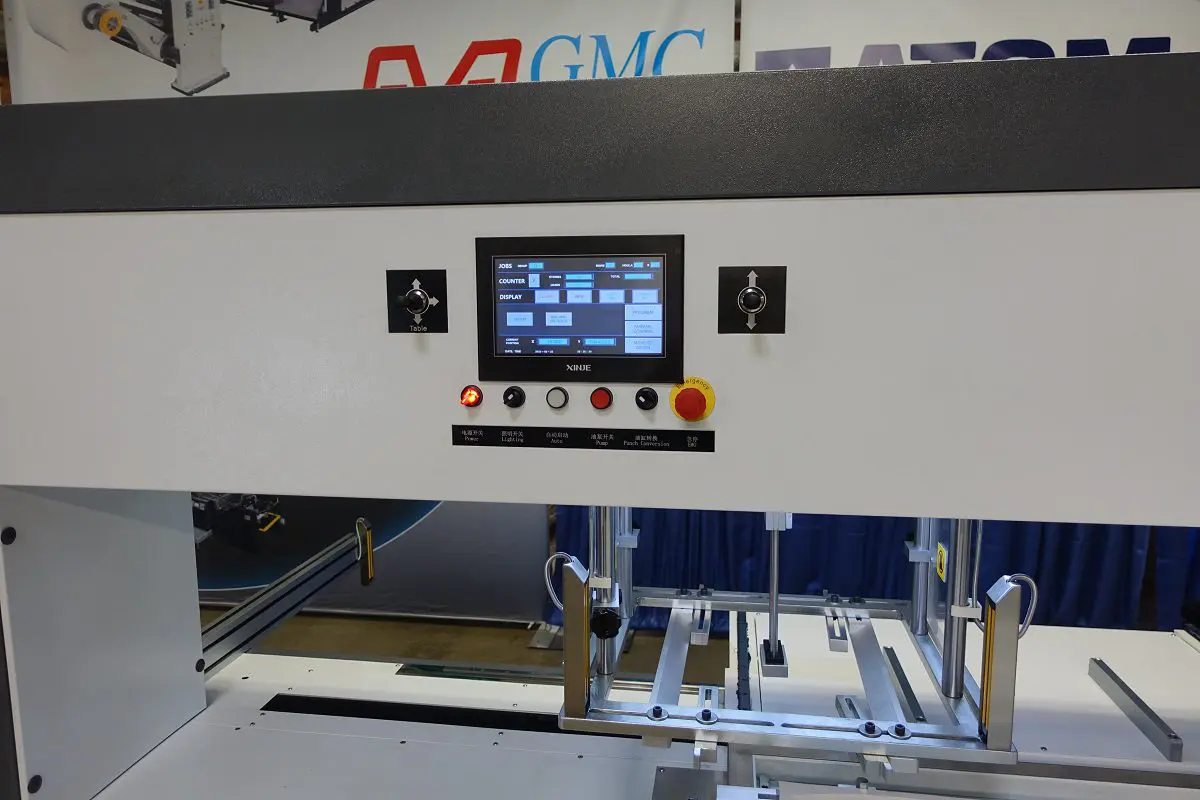

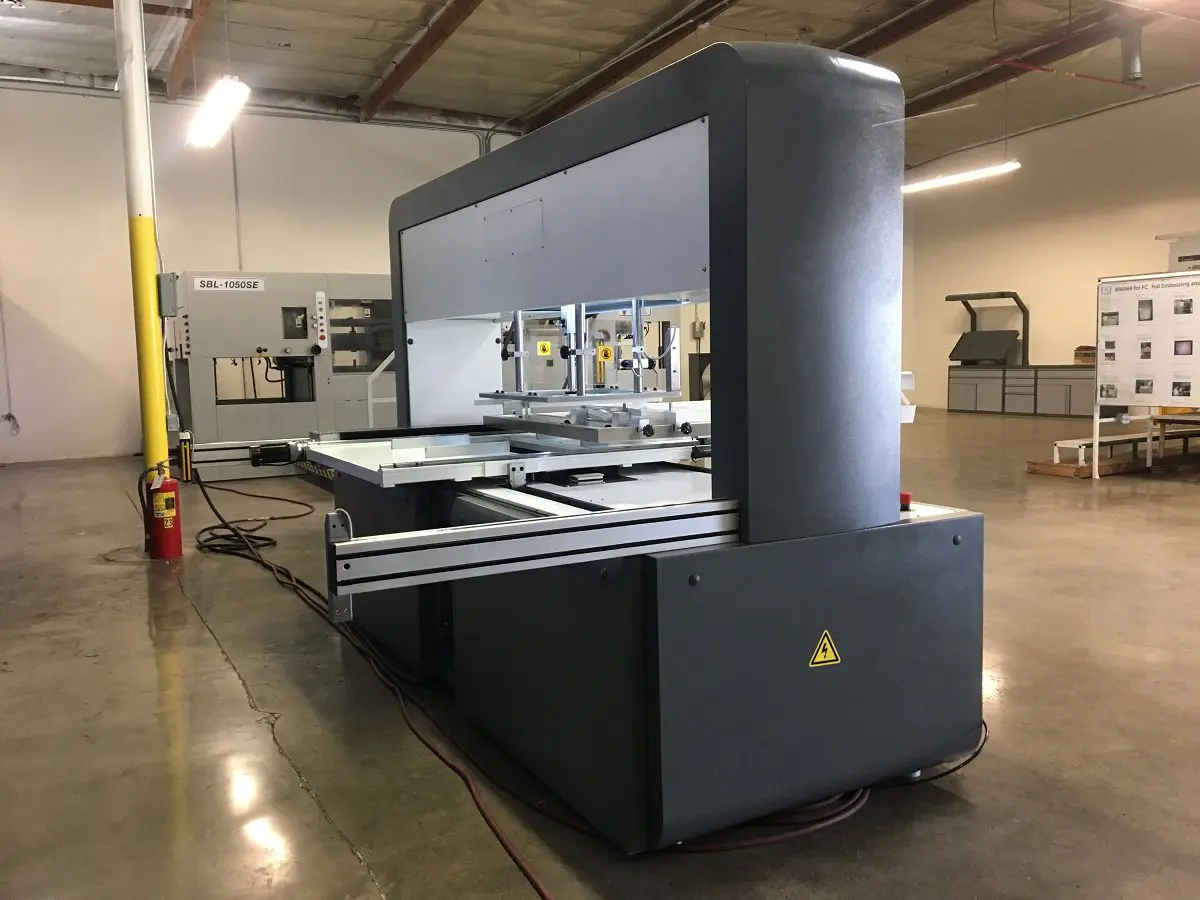

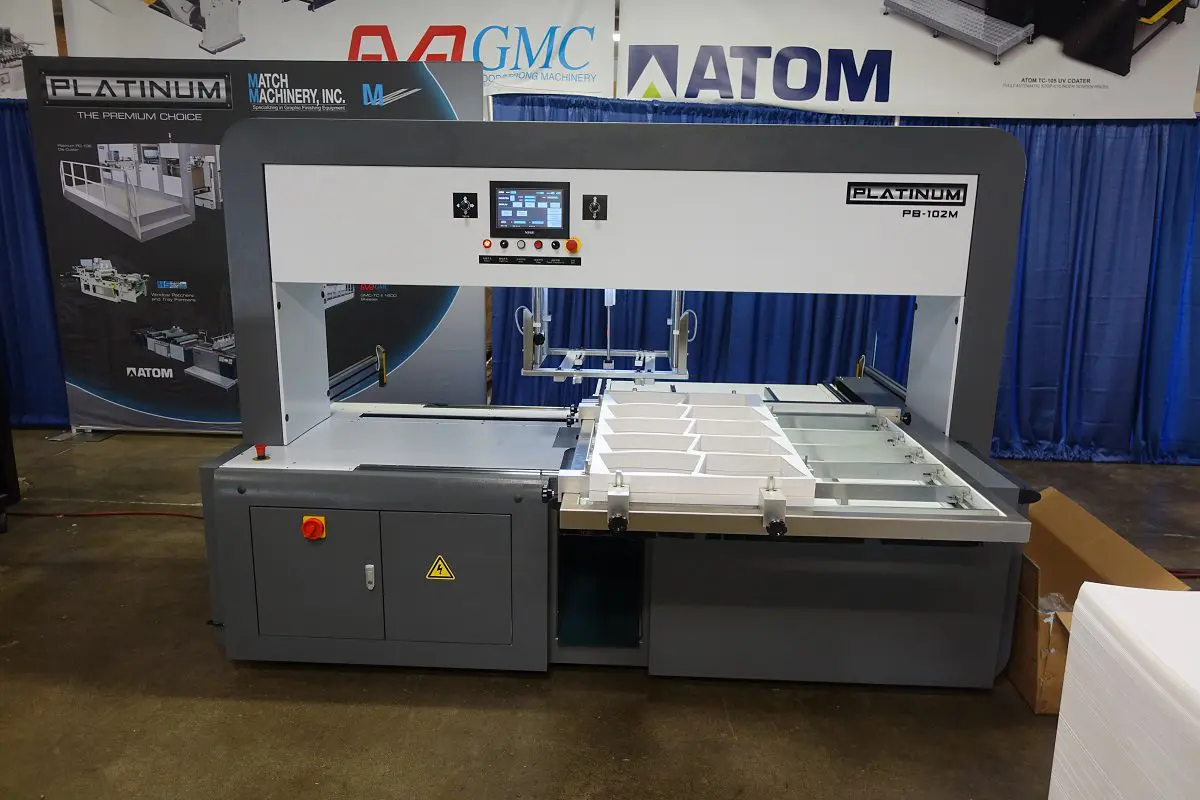

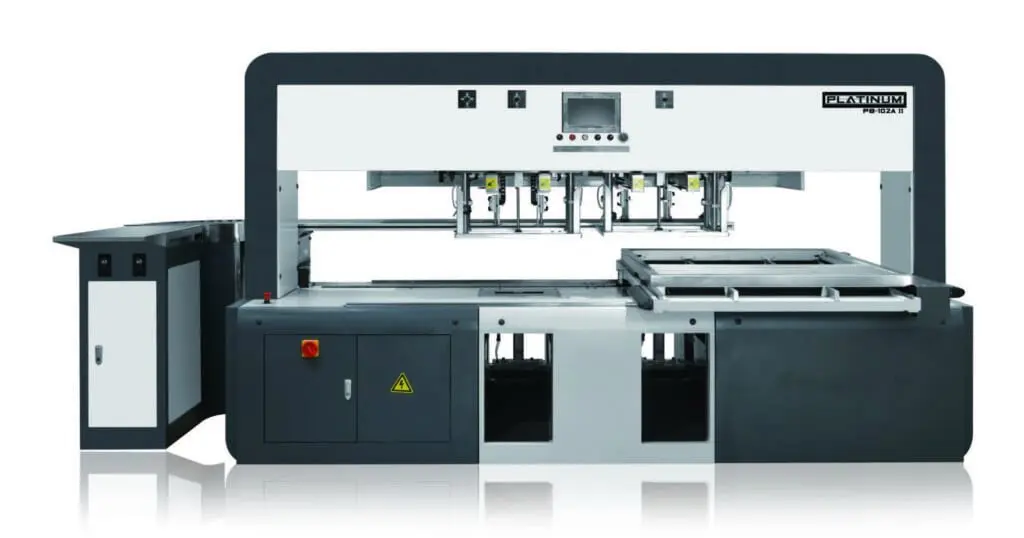

*NEW* PLATINUM PB-102 AII OFFLINE BLANKING SYSTEM
MULTMEDIA
PLATINUM PB-102 AII FEATURES
1. Dual-head blanking system.
2. Heavy-Duty, quality-built gantry structure main frame.
3. Frame style support base for precision blanking to
ensure damage free loads.
4. Equipped with high-precision linear bearing rails and
servo motors for smooth and precise frame movement.
5. Operator friendly touch screen for quick and simple
programing.
6. Manual removal of blanks after each cycle.
7. Safety barrier sensor to stop the blanking action should
the sensor detect an obstruction.
8. Operator is able to hand pick the blanks once each cycle is completed.
featured new equipment
*NEW* PLATINUM PB-102 AII OFFLINE BLANKING SYSTEM
MULTMEDIA
PLATINUM PB-102 AII FEATURES
1. Dual-head blanking system.
2. Heavy-Duty, quality-built gantry structure main frame.
3. Frame style support base for precision blanking to
ensure damage free loads.
4. Equipped with high-precision linear bearing rails and
servo motors for smooth and precise frame movement.
5. Operator friendly touch screen for quick and simple
programing.
6. Manual removal of blanks after each cycle.
7. Safety barrier sensor to stop the blanking action should
the sensor detect an obstruction.
8. Operator is able to hand pick the blanks once each cycle is completed.
FEATURED PREVIOUSLY OWNED EQUIPMENT ***(SOLD)***

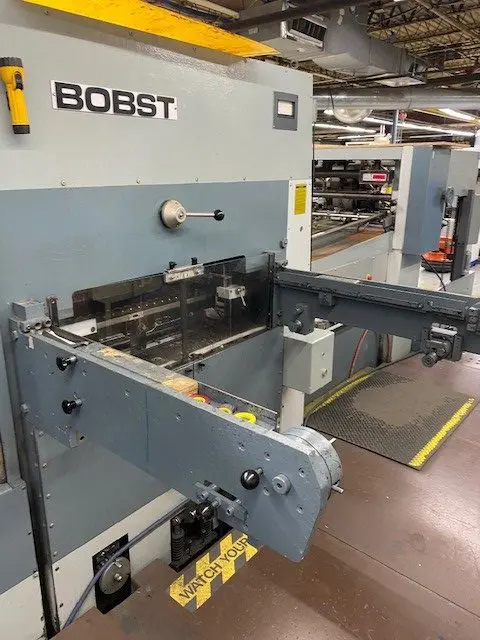

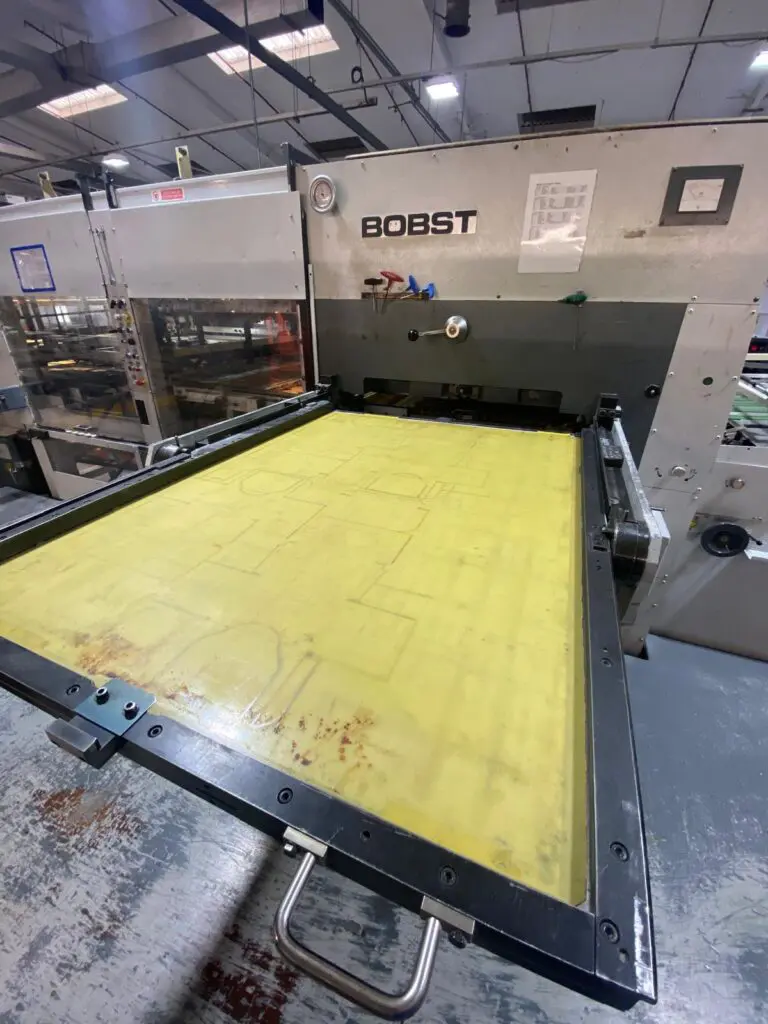

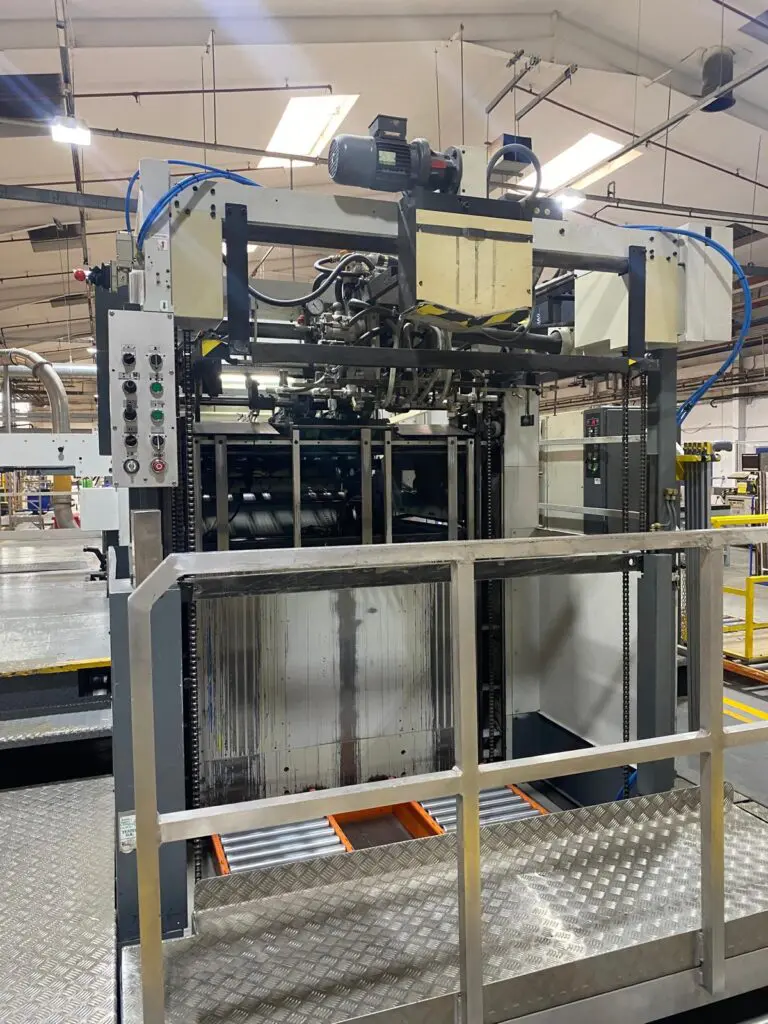

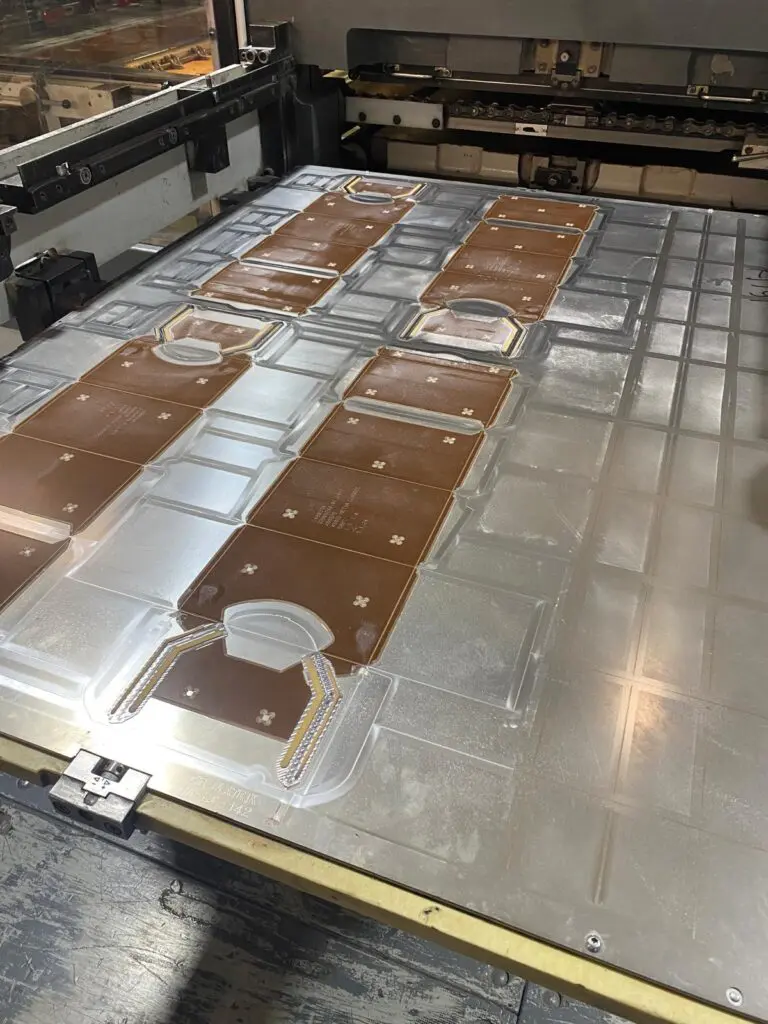

BOBST SP 142 ER - FLAT BED DIE-CUTTER BLANKER
MULTMEDIA
1995 Bobst SP 142 ER FEATURES
- With Stripping and Blanking
- (1) Quick Lock Cutting Chase
- (1) Chase Changer
- (1) Quick Lock Lower Stripping Frame
- (1) Quick Lock Blanking Frame
- (1) Thin Plate
- Continuous Feeder with Swords
- (1) Side Lay on Operator Side
- Pile Feeder with Automatic Lateral Moving
- Motorized Up and Down Movement of the Feeder Head
- Micrometric Centering of the Cutting Sheet
- Motorized Suction Head Unit
- Universal Lower Tool for Blanking
- No Stripping Pins
- 400mm Elevation
- Max Speed up to 6000 s/h
- Cutting Force 600 Tons
- 69,000 Hours
- Sheet Size: 1420 x 1020mm
- Sheet Size: 700 x 500mm
